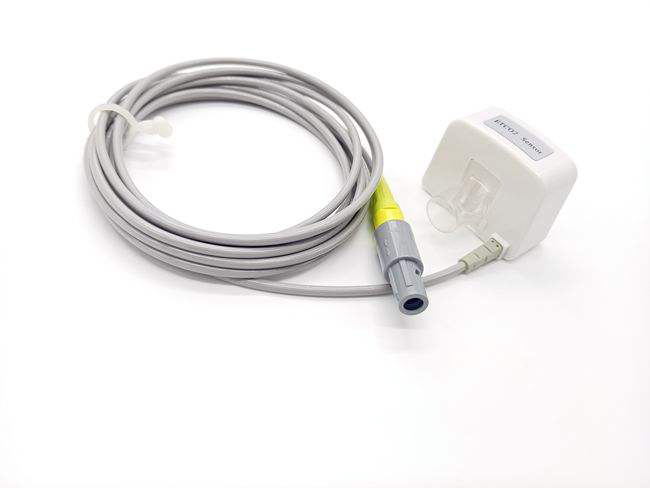

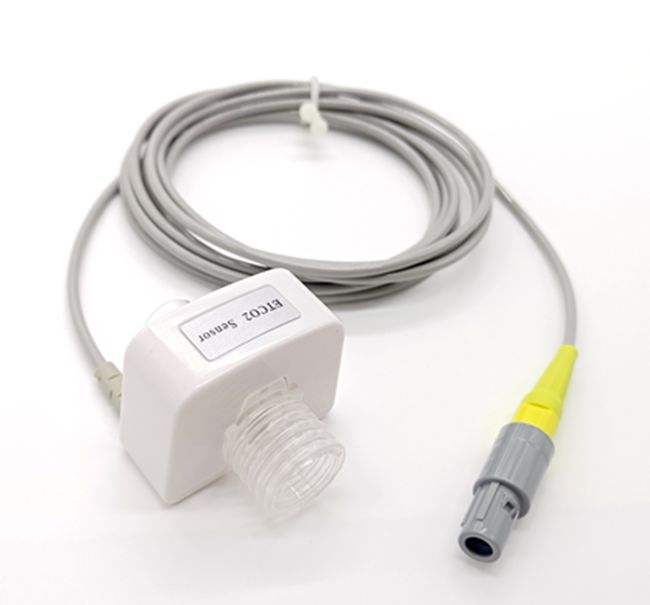

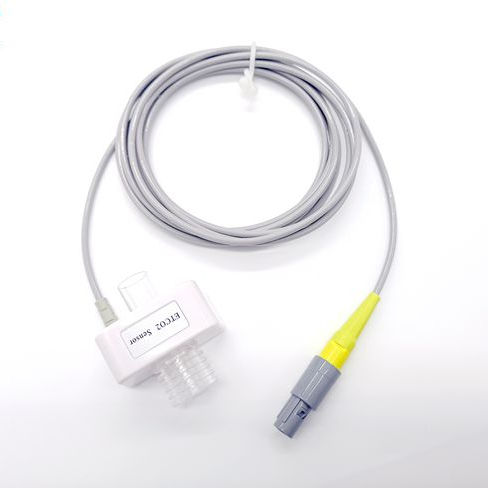

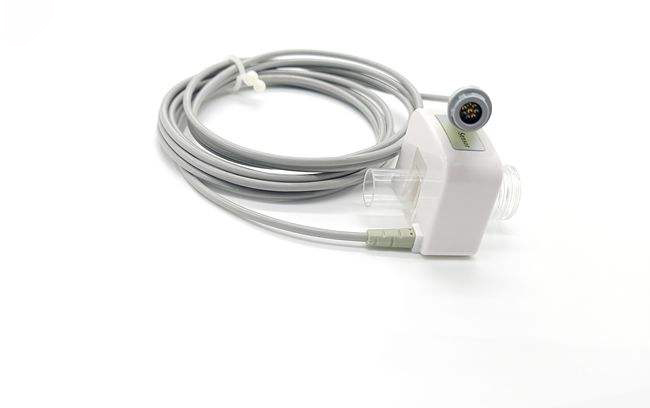

Mainstream Capnography EtCO2 Sensor Compatible with Nihon Kohden CO2 Module

|| Product Description

• Mode of Sampling:Main stream
• Principle of operation:Non-dispersive infrared,dual wavelength
• Initialization Time:Capnogram displayed in less than 4s environment temperature 25℃
• CO2 measurement range:0-114mmHg , 0-15% , 0-15.2kPa
• CO2 response time:Less than 60ms - adult / infant reusable or single-patient-use airway adapter
• CO2 resolution:0-40mmHg ±2mmHg
• 41-70mmHg ±5% of reading
• 71-100mmHg ±8% of reading
• 101-114mmHg ±10% of reading
• Above 80 breaths per minute ±12% of reading
• EtCO2 calculation:Peak of expired CO2 waveform method
